Alat Ukur Jarak Izin Listrik IEC 60335-1 Ayat 29 Kartu Uji Jarak Creepage
| Standard: | IEC 60335-1 | Clause: | Ayat 29 |
| Sizes: | 30 ukuran / set | Material: | Besi tahan karat |
| Test Sample: | Jarak bebas peralatan | Product Name: | Kartu Uji Jarak Creepage |
| High Light: | alat uji hipot ac,alat uji kawat pijar |
||
IEC 60335-1 Ayat 29 Kartu Uji Jarak Creepage untuk Mengukur Jarak Listrik
Standar & klausa:
IEC60335-1 Klausa 29, IEC 60065 Klausa 13, IEC60884-1, IEC60598, dan lain-lain
Sampel dan Pembatasan:
Izin listrik untuk peralatan rumah tangga, aksesori listrik, lampu, dll.
Aplikasi:
Pengukur digunakan untuk menentukan jalur terpendek antara dua bagian konduktif, atau antara bagian konduktif dan permukaan pembatas peralatan, diukur sepanjang permukaan insulasi, dengan spesifikasi yang dibuat sesuai dengan persyaratan.
Parameter teknik:

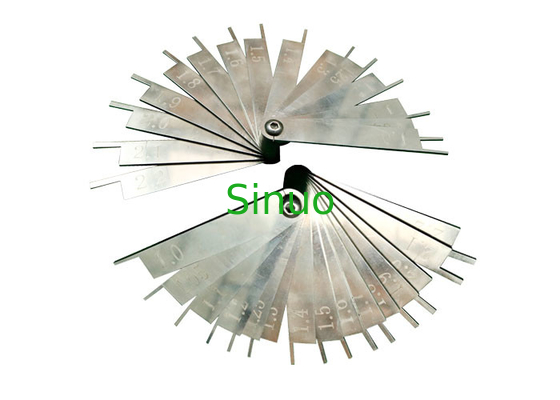

Set alat pengukur jarak rambat diintegrasikan dengan 30 buah alat pengukur jarak rambat:
1.0mm / 1.05mm / 1.1mm / 1.2mm / 1.25mm / 1.3mm / 1.4mm / 1.5mm / 1.6mm / 1.7mm / 1.8mm / 1.9mm / 2.0mm / 2.1mm /2.2mm /2.4mm
/2.5mm/2.8mm/3.2mm/3.6mm/4.0mm/4.2mm/4.5mm/5.0mm/5.6mm/6.3mm/7.1mm/8.0mm/9.0mm/10.0mm
Bahan: Stainless steel
