IEC 60065 R6mm Probe Stainless Steel Gambar 2C Telecom Probe Uji
| Applied Standard: | IEC60065: 2014 | Applied Clause: | klausa 2.1.1.1, 6.2.1 |
| Probe Material: | Besi tahan karat | Handle Material: | nilon |
| Probe End Radius: | R6 mm | Probe Diameter: | Φ12 mm |
| Baffle Diameter: | Φ50 mm | Probe Length: | 80 mm |
| High Light: | Probe Uji Telekomunikasi IEC 60065,Probe Uji Telekomunikasi R6mm |
||

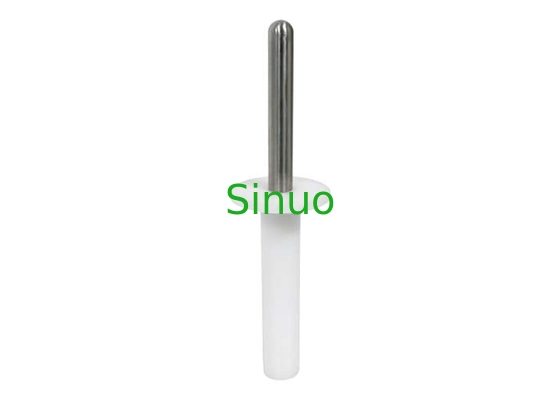

IEC 60065 Gambar 2C Telecom Test Probe
Informasi produk:
Probe uji telekomunikasi sesuai dengan IEC60950 2013 klausa 2.1.1.1, 6.2.1, gambar 2C, IEC60065: 2014 Lampiran B, IEC 62151 Gambar 3 dan UL 6500 angka B.1 dan lain-lain
Ini digunakan untuk memeriksa apakah bagian telanjang dari rangkaian TNV peralatan teknologi informasi memiliki perlindungan yang memadai.
Ada ulir M6 di ujung pegangan, di mana probe uji dapat dihubungkan dengan pengukur gaya untuk mencapai gaya yang diperlukan.
Parameter teknik:
| Panjang Probe | 80 mm |
| Probe End Radius | R6 mm |
| Diameter Probe | Φ12 mm |
| Baffle Diameter Handle | Φ 50 mm |
| Bahan pemeriksaan | Besi tahan karat |
| Tangani material | Nilon |
Sinuohave berbagai macam alat uji sesuai dengan standar yang berbeda, dan juga dapat menawarkan layanan yang disesuaikan.
