Alat Uji Tegangan Mekanik Terminal IEC 60998-2-2
| Standard: | IEC 60998-2-2 | Test station: | Stasiun tunggal |
| Speed of work: | 10±2 putaran/menit | Rotation diameter: | 75mm |
| Load weight: | 0.4-70.3Kg | Height distance: | 260-660mm, dapat disesuaikan |
| High Light: | Terminal Mekanik Alat Uji Stres,IEC 60998-2-2 Alat Uji Stres,660mm Alat Uji Stres Mekanik yang Dapat Disesuaikan |
||

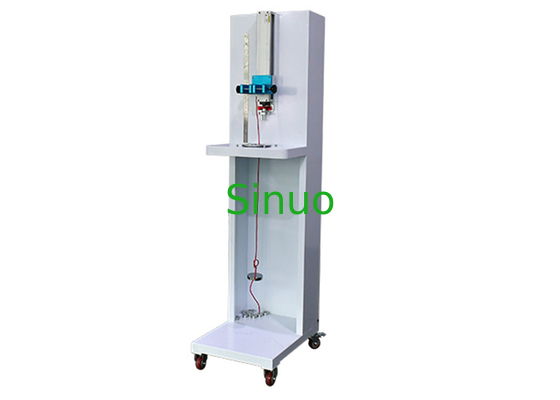

Alat Uji Tegangan Mekanik Terminal IEC 60998-2-2
Informasi produk:
ItuAlat Uji Tegangan Mekanik Terminaldirancang dan diproduksi sesuai dengan persyaratan standar:IEC 60998-2-2,IEC 60084 angka 1, IEC884 angka 11, dan lain-lain.
Peralatan uji digunakan untuk memeriksa apakah terminal tipe sekrup dan terminal tanpa sekrup dapat menahan tekanan mekanis yang terjadi selama penggunaan normal.Ini terutama digunakan untuk menilai apakah desain dan struktur terminal penjepit sekrup telah mencapai persyaratan untuk tidak merusak kawat secara berlebihan saat kawat dijepit.
Parameter teknik:
| Standar | IEC 60998-2-2 |
| Voltase | 220V (AC) 50Hz |
| Stasiun uji | Stasiun tunggal |
| Kecepatan kerja | 10±2 putaran/menit |
| Diameter rotasi | 75mm |
| Waktu ujian | 1-999999 kali |
| beban berat | 0.4-70.3Kg |
| Jarak ketinggian | 260-660mm, dapat disesuaikan |
| Diameter lengan kawat: |
6.5mm,9.5mm,13mm,14.5mm,15.9mm,19.1mm,22.2mm,25.4mm, 28.6mm,31.8mm,38.1mm,44.5mm |
