IEC60601-2-52 Loading Pad Peralatan listrik medis
| Impact load: | 1350n | Model: | SNM11 |
| Samples and restrictions: | Ranjang Medis | Diameter: | Ukuran 355mm±5mm |
| Material: | Baja 45#, berlapis krom | Standard: | IEC60601-2-52:2015 gambar 201.104 |
| High Light: | Pad Pengisian Peralatan Listrik Medis,IEC60601-2-52 Pengisian Pad,IEC60601-2-52 Peralatan listrik medis |
||
IEC60601-2-52 Loading Pad Peralatan listrik medis
Informasi produk:
1. Standar: sesuai dengan YY9706.252-2021 klausa 201.5.102 dan klausul 201.9.8.3.3.1, IEC60601-2-52:2015 klausul 201.5.102 dan angka 201.104 dan klausa 201.9.8.3.3.1.
2Sampel dan pembatasan: tempat tidur medis.
3Aplikasi: it is used to simulate human body dynamic load testing on medical beds to verify the reliability of equipment components that support or support patients during normal use during the application of dynamic forces.
4Prinsip uji: bekerja sama dengan peralatan pengujian beban dinamis tubuh manusia untuk mewujudkan pengujian dampak dinamis tempat tidur medis. beban dampak adalah 1350N atau berat maksimum pasien.
Parameter teknis:
| Dimensi |

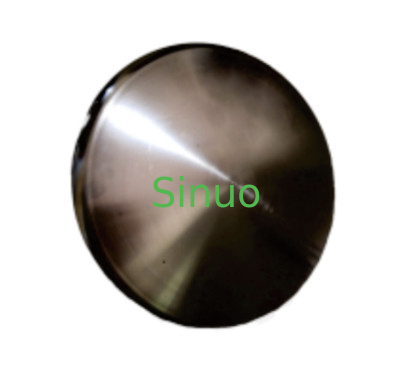

Menurut IEC60601-2-52:2015 angka 201.104Pad beban adalah benda bulat kaku dengan diameter Φ355mm±5mm, permukaan dengan kelengkungan bola cembung radius R800mm, dan radius tepi depan R20mm.
|
| Bahan | Baja 45#, dilapisi krom |
