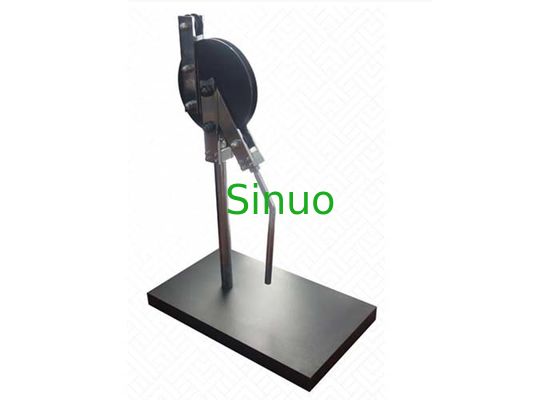

IEC 61386-21 Gambar 101 Perangkat lentur untuk pipa logam dan komposit
| Applied Standard: | IEC 61386-21 | Applied Clause: | Klausul 10.4.101 |
| Sample conduit diameter: | 16/20/25mm | Inner bending radius: | 96/120/150mm |
| Outer bending radius: | 113/141/178mm | Groove radius: | 8.1/10.1/12.7mm |
| High Light: | IEC 61386-21 Alat lentur,Alat Pengelompokan Saluran Metal,Komposisi pipa alat lentur |
||
IEC 61386-21 Gambar 101 Perangkat lentur untuk pipa logam dan komposit
Informasi produk:
Dilakukan untuk pengujian ketahanan panas dari berbagai casing semi-rigid dan pipa bergelombang, untuk menentukan nilai ketahanan panas yang diperlukan dari pipa, dan dengan demikian menentukan kekuatan ketahanan panasnya.Itu sesuai dengan GB20041.21-2008 "Special Requirements for Cable Management Conduit System for Rigid Conduit System", GB/T14823.2 "Special Requirements for Electrical Installation Conduit-Rigid Insulating Material Flat Conduit".Dan JG3050 "Isolating electrical conduit and accessories for buildings" dan ZBG33008 "Polyvinyl chloride plastic corrugated wire and wire tube". IEC61386-21 Pasal 10.4.101 dan Gambar 101 dan persyaratan lainnya
Parameter teknis:
Tabel pemilihan spesifikasi peralatan:
| Artikel | Spesifikasi | ||
| Diameter saluran sampel (mm) | 16 | 20 | 25 |
| Jarak lentur bagian dalam (mm) | 96 | 120 | 150 |
| Radius lentur luar (mm) | 113 | 141 | 178 |
| Radius alur (mm) | 8.1 | 10.1 | 12.7 |
| Berat (kg) | 26 | 32 | 41 |
| Dimensi (mm) | 300*500*710 | 300*500*770 | 300*500*840 |
