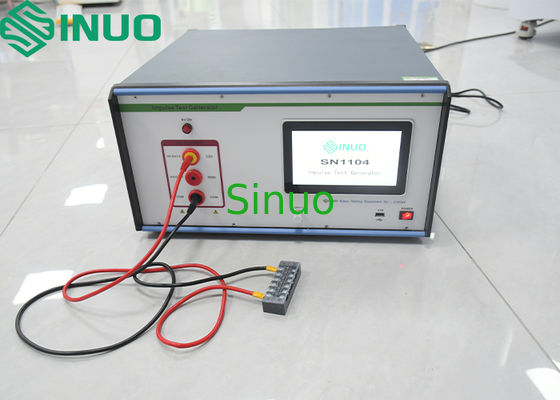

Impulse Test Generator For Household Appliances & Electronic Devices
  • nama
  • nama
  • nama
  • nama

Impulse Test Generator For Household Appliances & Electronic Devices

MOQ: 1
harga: dapat dinegosiasikan
Kemasan Standar: karton
Periode pengiriman: 30 Hari
Cara Pembayaran: T/T
Kapasitas pasokan: 30 set per bulan
Rincian Informasi
Deskripsi Produk
Informasi detil
Tempat asal
Tiongkok
Nama merek
Sinuo
Sertifikasi
Calibration Certificate (Cost Additional)
Nomor model
SN1104
Tegangan Tinggi:
12,5 kV
Bentuk Gelombang Impuls:
1,2µs ±30% depan, 50µs ±20% nilai setengah
Rentang Tegangan Puncak:
300V~12,500V
Resistensi internal instrumen:
12Ω ±10%, 500Ω ±10%
Interval Dampak:
5~99an
Siklus dampak:
1~9999
Menyoroti:

household appliance impulse test generator

,

electronic device testing equipment

,

impulse generator with warranty

Deskripsi Produk
Impulse Test Generator For Household Appliances & Electronic Devices
Product Information
This impulse test generator conforms to IEC60335-1 clause 14, IEC60065:2014 clause 10.2, 13.3.4 a), and IEC 60065:2014 clause 13.3.4 b), 14.2, IEC60950 standards.
Applications
  • Detects transient over voltage of components
  • Measures electrical clearance and creepage distance
  • Tests household appliances, audio/video equipment, and similar electronic devices
Key Features
  • Sample breakdown produces visible spark and acoustic signal
  • Instrument peak voltage decreases substantially (close to zero) when breakdown occurs
  • Consistent results when applying same voltage in subsequent tests
Technical Parameters
Model SN1104
DC high voltage Max. 12.5kV
Impulse voltage wave

Impulse wavefront time: 1.2 µs ± 30%;

Half value of after wave time: 50 µs ± 20%

 (waveform can be checked with external oscilloscope)
Instrument internal resistance 12Ω ± 10%, 500Ω ± 10%
Peak voltage Low: 300 V~ 2,500V
High: 2,500 V~ 12,500V
Impact interval time 5 ~ 99s
Impact cycles 1 ~ 9999
Polarity Positive and negative
Working power source Rated voltage: ~ 220V±10%, 50Hz
Dimension 430mm×180mm×480mm
Weight 20 KG
Impulse Test Generator For Household Appliances & Electronic Devices 0
