Digital Torque Tester For Lamp Holders With High-Precision LCD Display
  • nama
  • nama
  • nama
  • nama

Digital Torque Tester For Lamp Holders With High-Precision LCD Display

MOQ: 1
harga: dapat dinegosiasikan
Kemasan Standar: karton
Periode pengiriman: 30 Hari
Cara Pembayaran: T/T
Kapasitas pasokan: 20 set per bulan
Rincian Informasi
Deskripsi Produk
Informasi detil
Tempat asal
Tiongkok
Nama merek
Sinuo
Sertifikasi
Calibration Certificate(Cost Additional)
Nomor model
SN993
Kisaran torsi:
0–10 N·m (dapat disesuaikan)
Akurasi pengukuran:
≤1%
Pengulangan:
≤0,5% FS
Linear:
≤0,5% FS
Histeresis:
≤0,5% FS
Perlengkapan:
E14, E27, B15, B22 (dapat disesuaikan)
Menyoroti:

digital torque tester for lamp holders

,

high-precision LCD torque tester

,

lamp holder torque testing equipment

Deskripsi Produk

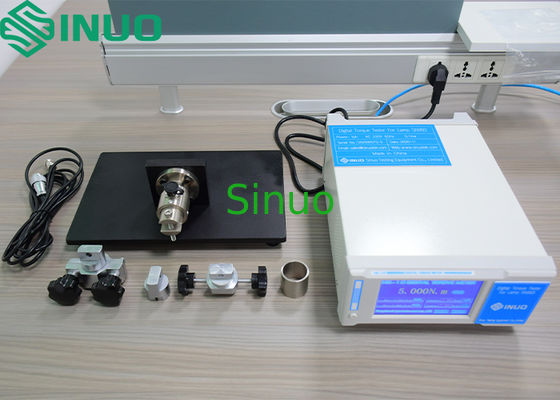

Digital Torque Tester For Lamp Holders With High-Precision LCD Display
Torsion resistance is a critical safety requirement for the mechanical strength of lamp holders. This high-precision digital torque tester meets the anti-torque measurement requirements for various light sources including LED bulbs, energy-saving lamps, incandescent lamps, and fluorescent lamps.
Product Features
  • 5-inch high-definition LCD touch screen display with clear parameter visualization
  • Fixture-based lamp cap fixation for direct positive/negative torque measurement
  • Adjustable torque test range: 0~10N.m (custom ranges available)
  • Customizable lamp cap fixtures for various specifications
  • High-reliability strain gauge torque sensor with maximum value retention and alarm functions
  • Compliant with international and domestic standard requirements
Technical Specifications
Parameter Value
Measuring range 0-10N*m
Measuring accuracy ≤1%
Repeatability ≤0.5% FS
Linear ≤0.5% FS
Hysteresis ≤0.5% FS
Overload capacity 120% FS
Temperature compensation range -10℃ to 60℃
Rated operating conditions 25±5℃, ≤65% RH, 220V 60Hz
Allowable working conditions 0-40℃, ≤75% RH, 220V 60Hz
Dimensions (W×H×L) 330mm×110mm×335mm
Power consumption 15VA
Compatible Fixtures
Fixture Type Standard Reference
E14 IEC62560 Figure 3
E27 IEC62560 Figure 3
B15 IEC62560 Figure 4
B22 IEC62560 Figure 4
Note: Test gauges should be prepared by user and are not included with this machine.
Digital Torque Tester For Lamp Holders With High-Precision LCD Display 0
