Video Measuring System With 2D Contour Scanning Direct Point-And-Measure Function

MOQ:	1
harga:	Customized
Kemasan Standar:	kasus kayu lapis
Periode pengiriman:	30 Hari
Cara Pembayaran:	T/T
Kapasitas pasokan:	50 set per bulan

Rincian Informasi

Deskripsi Produk

Informasi detil

Tempat asal

Tiongkok

Nama merek

Sinuo

Sertifikasi

Calibration Certificate (Cost Additional)

Nomor model

JVB300H

Pukulan pengukuran:

300×200×200mm

Dimensi keseluruhan:

1200×700×1540mm

beban meja:

30 kg

Modus Operasi:

petunjuk

Pembesaran:

Optik 0,7×–4,5×

Perangkat Lunak Pengukuran:

Pengukuran 2D

Skala linear:

Skala presisi tinggi 0,5 µm

Ketepatan:

(2,0 + L/200) m

Deskripsi Produk

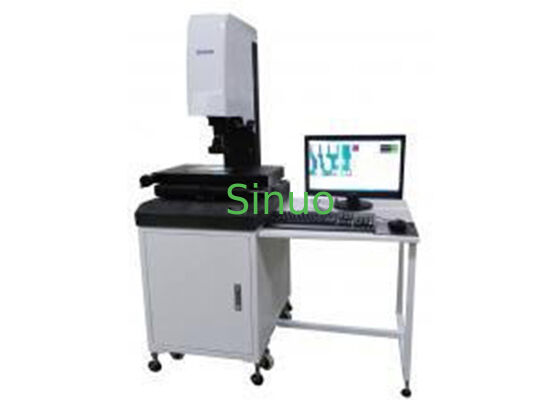

Video Measuring System With 2D Contour Scanning Direct Point-And-Measure Function

Product Information:

The JVB300H Video Measuring System is a high-accuracy, granite-based 2D vision metrology instrument designed for precise dimensional inspection, contour measurement, and quality control of complex components. It is widely used in precision electronics, connectors, tooling, metal parts, injection molding, semiconductors, automotive components, laboratories, and industrial metrology departments.

Product Features:

High-hardness, high-precision granite base and column, ensuring outstanding stability and long-term durability.

Adjustable LED surface light and contour light, providing uniform illumination with low heat generation.

Continuous zoom lens enables real-time magnification adjustment during measurement.

X/Y axes adopt linear guide rail and slider structure, improving rigidity and repeatability.

Integrated graphic report output, allowing quick export of inspection results.

Equipped with laser locator to accurately indicate measurement position.

Software: OVM standard version—simple, intuitive, and easy to operate.

Applications:

The JVB300H efficiently measures contours, surface features, dimensions, angles, and positional relationships of complex precision components.
It is suitable for industries such as:

Electronics

Instruments & meters

Cables and wiring

Tooling & fixtures

Precision machining

Automotive & aerospace

Semiconductors

Connectors & stamping parts

Plastics and rubber components

Research institutes and metrology centers

Technical Parameters:

Item	Specification
Model	JVB300H
Measurement Travel (X×Y×Z)	300 × 200 × 200 mm
Overall Dimensions	1200 × 700 × 1540 mm
Table Load	30 kg
Operation Mode	Manual (with fast-movement switching)
Magnification	Optical 0.7×–4.5× / Image 28×–180× (customizable)
Measurement Software	Standard 2D measurement software
Power Supply	(110V/220V) ±10%, 50/60 Hz
Linear Scale	0.5 µm high-precision scale
Accuracy	(2.0 + L/200) µm
Repeatability	2 µm
Working Environment	20–25°C; RH 45%–75%
CCD	2.6 MP Color Digital CCD
Lens	High-definition industrial optical lens
Illumination	Contour light + surface light (interchangeable)

Software Overview:

Key Features

Direct point-and-measure function

Basic geometric measurement

Composite element measurement

Form and position tolerance evaluation

Coordinate system setup

2D contour scanning

Output to Word, Excel, CAD formats

Automatic edge detection via mouse click—no need to reposition the worktable

Measurement Capabilities:

Geometric elements: points, lines, circles, arcs, ellipses

Composite calculations: center distance, tangency, midline, perpendicular distances, angle bisectors, intersection points

Form tolerance evaluation: concentricity, roundness, straightness, position, inclination

Coordinate adjustment: translation, rotation, re-establish coordinate system

Data reporting: exportable to office software for analysis and printing
