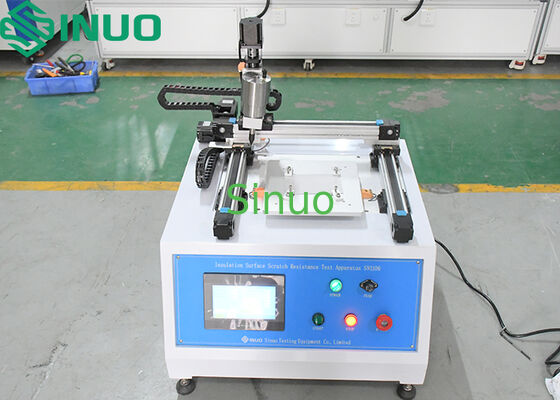

IEC 60335-2 Automatic Insulation Surface Scratch Resistance Test Apparatus

MOQ: 1
harga: dapat dinegosiasikan
Kemasan Standar: kasus kayu lapis
Periode pengiriman: 30 hari
Cara Pembayaran: T/T
Kapasitas pasokan: 10 Set Per Bulan
Informasi detil
Deskripsi Produk
Informasi detil
Tempat asal
Cina
Nama merek
Sinuo
Sertifikasi
Calibration Certificate (Cost Additional)
Nomor model
SN1106
Stasiun Uji:
Satu stasiun
Sistem Pengendalian:
PLC + Layar Sentuh
Kecepatan menggaruk:
0-25mm/s diatur
Waktu Menggaruk:
0-9999 kali
Bangku tes:
Dapat diputar 90°
Tekanan menggaruk:
10N±0,5N 30N
Pin menggaruk:
pin baja yang dikeraskan dengan sudut 40℃
Sudut Goresan:
80° hingga 85° terhadap horizontal
Menyoroti:

IEC 60335-2 insulation test apparatus

,

automatic scratch resistance tester

,

electrical appliance surface testing equipment

Deskripsi Produk
IEC 60335-2 Automatic Insulation Surface Scratch Resistance Test Apparatus
This advanced testing equipment evaluates the scratch resistance of insulation surfaces on household appliances and similar equipment, ensuring compliance with international safety standards.
Compliance Standards
Meets requirements of IEC 60335-1 clause 21.2, IEC60950:2013 clause 2.10.8.4, IEC 62368-1 clause 5.4.1.5.3, IEC 60335-2-78:31, IEC 60335-2-95:31, IEC 60335-2-97:31, IEC 60335-2-103:31, IEC 60335-2-40:31, and related standards.
Applicable Samples
Designed for testing solid insulated parts that are touched, coated printed boards, or coated components of household and similar appliances.
Testing Methodology
  • Uses a hardened steel pin with 40° conical tip and 0.25mm ± 0.02mm radius
  • Pin held at 80° to 85° angle to horizontal with 10N ± 0.5N axial force
  • Scratching speed of approximately 20mm/s
  • Creates two parallel scratches spaced appropriately to avoid interference
  • Scratches cover approximately 25% of insulation length
  • Second set of scratches made at 90° to first pair without crossing
Equipment Features
  • PLC + touch screen control system for precise operation
  • Stepper motor drive for accurate movement control
  • 90° auto-rotation test bench for vertical and horizontal testing
  • Programmable scratch distance, times, and speed parameters
Technical Specifications
Parameter Specification
Input Power Supply 115 V 60 Hz
Test Stations One station
Control System PLC + touch screen
Drive Mode Stepper motor drive
Scratching Speed 0-25mm/s adjustable, preset capability
Scratching Cycles 0-9999 times, preset capability
Scratching Distance Approximately 25% of insulation length, preset capability
Test Bench 90° rotation capability
Scratching Pressure 10N±0.5N 30N
Scratching Pin Hardened steel pin with 40° conical tip, 0.25mm ± 0.02mm radius
Scratching Angle 80° to 85° to horizontal
