Inclined Plane Test Device Enhances Appliance Stability Testing
  • nama
  • nama

Inclined Plane Test Device Enhances Appliance Stability Testing

MOQ: 1
harga: dapat dinegosiasikan
Kemasan Standar: Kasus Kayu Lapis
Periode pengiriman: 30 hari
Cara Pembayaran: T/T
Kapasitas pasokan: 5 set per bulan
Informasi detil
Deskripsi Produk
Informasi detil
Tempat asal
Cina
Nama merek
Sinuo
Sertifikasi
Calibration Certificate (Cost Additional)
Nomor model
SN1105-2000
Stasiun Uji:
Stasiun tunggal
kontrol listrik:
Kontrol Tombol Tekan
Modus berkendara:
Penggerak kerekan listrik
ukuran meja:
2000 × 2000mm
Kisaran sudut:
0–15°
Kapasitas Beban:
Maksimum 500kg
Deskripsi Produk

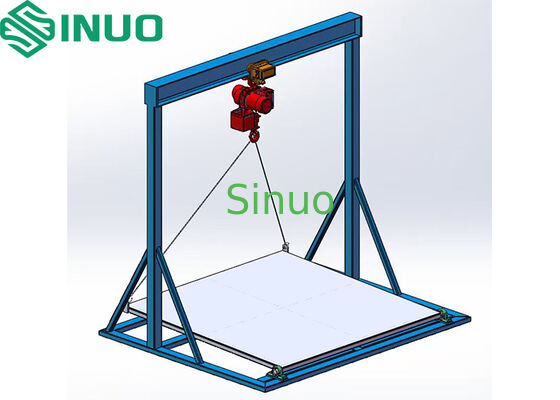

Inclined Plane Test Device for Appliance Stability Testing
This inclined plane test device enhances stability testing for household appliances, ensuring compliance with international safety standards through precise angle adjustment and reliable performance.
Product Overview
Designed for conducting stability tests on household appliances that operate on floors, tables, or other flat supporting surfaces.
Testing Standards
IEC 60335-1:2020 Household and Similar Electrical Appliances - Safety - Part 1: General Requirements, Clause 20.1
Compatible Appliances
  • Microwave ovens
  • Ovens
  • Induction cookers
  • Refrigerators
  • Washing machines
Testing Principle
The test sample is placed on the working table, which tilts to various angles through the tilting mechanism to evaluate stability performance.
Design Features
  • Tiltable working platform with electric hoist drive system
  • Stable construction with smooth operation
  • Easy angle adjustment capability
  • Traveling crane mechanism for precise control
Technical Specifications
Parameter Specification
Model Inclined Plane Test Device SN1105-2000
Test Station Single station
Electrical Control Push-button control
Drive Mode

Electric hoist drive

Inclined Plane Test Device Enhances Appliance Stability Testing 0
Table Size 2000 × 2000 mm
Table Material High-quality painted steel plate
Angle Adjustment Range 0-15°, adjustable with digital inclinometer
Load Capacity Maximum 500 kg
Overall Dimensions approx. 2600 × 2000 × 2500 mm (W × D × H)
Equipment Weight 350 kg
Power Supply AC 220 V ±10%, 50-60 Hz
Rated Power 1.5 kW
