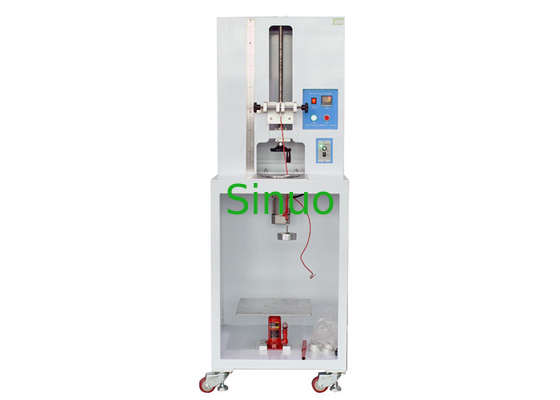

IEC 62196-1 Ed.4 Clamping Screw Terminal Tester Untuk Kendaraan Listrik
| Applied Standard: | IEC 62196-1Ed.4CDV 2020 klausa 13.3.1 fig12, tabel 3 | The range of counting number: | 1~9999 (150 kali (15 menit) secara default. |
| Rate of Testing: | (10±2) putaran/menit | Rotating weight: | 0,4~70,3 kg |
| The rotating diameter: | 75mm | The diameter of bushing hole (mm): | 6.5,9.5, 13,14.5,15.9 dll. |
| High Light: | IEC 62196-1 Penguji Terminal Sekrup Penjepit,Penguji Terminal Sekrup Penjepit Kendaraan Listrik |
||
IEC 62196-1 Ed.4 Clamping Screw Terminal Tester untuk Kendaraan Listrik
Informasi produk:
Mesin uji ini sesuai dengan IEC 62196-1Ed.4CDV 2020 klausa 13.3.1 fig12, tabel 3.
Kesesuaian ini digunakan untuk menilai apakah desain dan struktur terminal sekrup penjepit sesuai dengan persyaratan non-kerusakan berlebih pada kawat.Selain itu, juga digunakan untuk memeriksa apakah terminal sekrup penjepit dapat menahan tekanan selama proses penggunaan normal.
Waktu pengujian dapat diatur sebelum pengujian, dan kepatuhan berhenti secara otomatis dengan alarm saat waktu pengujian tercapai.
Parameter teknik:
| Sumber Daya listrik: | AC220V, 60Hz |
| Kisaran menghitung nomor: | 1~9999 (150 kali (15 menit) secara default. |
| Tingkat Pengujian: | (10±2) putaran/menit |
| Berat berputar: | 0,4~70,3kg (detail lihat tabel berikut 3) |
| Diameter berputar: | 75mm |
| Diameter lubang bushing (mm): | 6.5,9.5, 13,14.5,15.9,19.1,22.2,25.4,28.6, 31.8, 38.1, 44.5mm (detail lihat tabel 3) |
| Tinggi (H) (mm): | 260-660mm |
| Ukuran: | 790mmX400mmX1500mm |
Konfigurasi busing dan massal adalah sebagai berikut:
