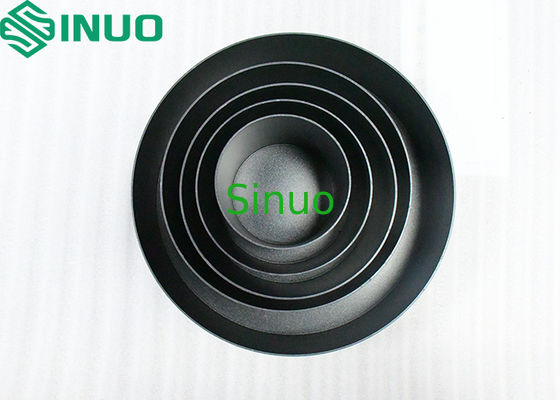

Kapal untuk elemen hub induksi IEC 60335-2-6:2018 Gambar 102
| Applied Standards: | IEC 60335-2-6 Gambar 102, IEC 60335-2-9 Gambar 104 | Vessels Size: | Ф110 、 ф145 、 ф180 、 ф220 、 ф300 mm |
| Vessels Material: | baja karbon rendah | Carbon Content: | Maksimum 0,08% |
| Wall Thickness: | 2±0,5 mm | Vessels Function: | Uji pemanasan minyak goreng |
| High Light: | Kapal uji hob induksi,Kapal yang sesuai dengan IEC 60335-2-6,Peralatan Pengujian Peralatan Listrik |
||
Informasi Produk:
| Material | Baja karbon rendah dengan kandungan karbon maksimum 0,08% |
|---|---|
| Dimensi (mm) |
Ф110: 140×(2±0.5)
Ф145: 140×(3±0.5)
Ф180: 140×(3±0.5)
Ф220: 120×(3±0.5)
Ф300: 100×(5±0.5)
|
| Ketebalan Dinding (mm) | 2±0.5 |
| Kekakuan Maksimum | C≦0.006d, tidak boleh cembung |
| Bentuk & Konfigurasi | Silinder tanpa pegangan logam, tonjolan, atau penutup |
