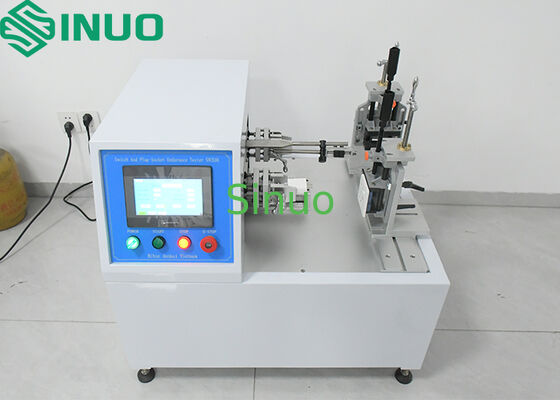

IEC 60669-1:2007 Plugs Socket-outlets Switches Endurance Test Equipment

MOQ:	1
harga:	dapat dinegosiasikan
Kemasan Standar:	Kasus kayu lapis
Periode pengiriman:	30 hari
Cara Pembayaran:	T/T
Kapasitas pasokan:	10 Set Per Bulan

Informasi detil

Deskripsi Produk

Informasi detil

Tempat asal

Nama merek

Sinuo

Sertifikasi

Calibration Certificate (Cost Additional)

Nomor model

SN2116

Stasiun kerja:

Modus berkendara:

Motor Servo

Stroke Linier:

0–150 mm, dapat diatur sebelumnya

Kecepatan Tes:

15 siklus/menit, 7,5 siklus/menit, atau 30 siklus/menit, dapat diatur sebelumnya

Siklus uji:

0–999.999 siklus, dapat diprogram

Penjepitan spesimen:

Penjepitan mekanis

Menyoroti:

IEC 60669-1 plugs sockets test equipment

electrical switches endurance testing device

socket-outlets switches compliance test equipment

Deskripsi Produk

IEC 60669-1:2007 Plugs Socket-outlets Switches Endurance Test Equipment

This specialized endurance test equipment evaluates the mechanical and electrical performance of electrical accessories including plugs, socket-outlets, switches, and appliance couplers according to international standards.

Product Overview

Compliance Standards:

IEC 60884-1:2006 - Plugs and socket-outlets for household and similar purposes
IEC 61058-1:2008 - Switches for appliances
IEC 60669-1:2007 - Switches for household and similar fixed electrical installations
IEC 60320-1:2007 - Appliance couplers for household and similar general purposes

Specimen Compatibility: Accommodates plugs, socket-outlets, appliance couplers, switches, and similar electrical accessories from various countries.

Application: Designed for testing making and breaking capacity, breaking capacity, and normal operating life of electrical accessories. Evaluates mechanical wear resistance, electrical fatigue performance, contact functionality, and identifies potential failure modes including excessive wear or permanent damage.

Testing Principle

Utilizes servo motor-driven mechanisms to perform repeated linear pressing, toggling, or rotating actions on test specimens while conducting simultaneous load switching tests. All parameters including make/break time, test speed, stroke, and rotation angle are programmable via touch screen interface.

Structure & Features

Integrated frame structure for stability
Servo motor drive with precision ball screw and synchronous belt transmission
7-inch color touch screen for intuitive operation and comprehensive digital display
PLC intelligent control system
Three-axis adjustable fixture compatible with push-button, toggle, rocker, and rotary switches, plus plug and socket endurance testing

Technical Parameters

Parameter	Specification
Model	SN2116
Workstations	2 stations, 2 linear synchronous stations
Electrical Control	PLC intelligent integrated control with 7-inch HMI touch interface
Drive Mode	Servo motor
Linear Stroke	0-150 mm, presettable
Make Time	0-99.9 s, presettable
Test Speed	15 cycles/min, 7.5 cycles/min, or 30 cycles/min, presettable
Test Cycles	0-999,999 cycles, programmable
Dimensions	Approx. 800 × 800 × 800 mm (W × D × H)
Weight	130 kg
Power Supply	AC220V ±10% / 50-60 Hz
Operating Environment	Ambient temperature: 0-40°C, Humidity: 30%-90%

Test Capabilities

Switch making and breaking capacity test
Switch normal operation endurance test
Plug and socket breaking capacity test
Plug and socket normal operation endurance test
Appliance coupler breaking capacity test
Appliance coupler normal operation endurance test
