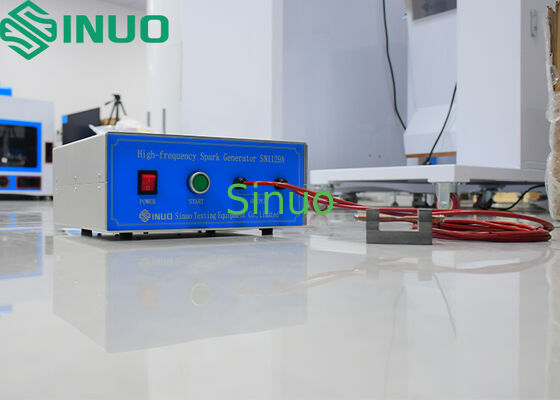

IEC 60335-2-6 Generator Kunci Frekuensi Tinggi 3mm Panjang Kunci
| Spark Length: | sekitar 3mm | Spark Energy: | Setidaknya 0,5J |
| Spark Generation Mode: | Keluaran bipolar | Peak Voltage: | ±7kv |
| Current: | 40mA; 20kHz | Ignition Distance: | 2-5mm disesuaikan |
| High Light: | IEC 60335-2-6 Generator percikan,Generator percikan frekuensi tinggi 3mm,Generator percikan uji listrik |
||
IEC 60335-2-6 Generator Kunci Frekuensi Tinggi 3mm Panjang Kunci
Informasi produk:
Standar: Sesuai dengan IEC 60335-2-6 klausa 22.111, dll.
Aplikasi: Hal ini digunakan untuk memeriksa apakah gas mudah terbakar dilepaskan dari lubang ventilasi selama proses pembersihan oven pyrolytic pembersih diri dan apakah ada risiko pembakaran.
TParameter teknis:
|
Panjang percikan |
Sekitar 3mm |
|
Energi dari setiap percikan |
Setidaknya 0,5J |
|
Modus Generasi Kunci |
Bipolar output |
|
Tegangan puncak |
±7kv |
|
Saat ini |
40mA; 20kHz; |
|
Jarak pembakaran |
2-5mm disesuaikan |
Gambar standar:
