IEC61386-1&23 Flexible Conduit Bending Tester 0-360° Adjustable

MOQ:	1
harga:	dapat dinegosiasikan
Kemasan Standar:	Kasus kayu lapis
Periode pengiriman:	30 hari
Cara Pembayaran:	T/T
Kapasitas pasokan:	10 Set Per Bulan

Informasi detil

Deskripsi Produk

Informasi detil

Tempat asal

Nama merek

Sinuo

Sertifikasi

Calibration Certificate (Cost Additional)

Nomor model

SN1915

Stasiun Uji:

Stasiun tunggal

Modus berkendara:

Penggerak Motor Servo

Sudut Bending:

0–360° dapat disesuaikan

Kecepatan membungkuk:

0–60 siklus/menit

Siklus Pembengkokan:

0–999.999

Penjepitan spesimen:

Penjepitan mekanis

Deskripsi Produk

IEC61386-1 Flexible Conduit Bending Tester 0-360° Adjustable

Product information:

Applicable Standards:
IEC61386-1:2017clause 10.5

IEC61386-23:2021clause 10.5

Specimens & Scope: Suitable for metal, non-metallic and composite conduits or fittings for electrical or communication systems up to AC 1000 V and/or DC 1500 V.

Test Purpose: To evaluate whether conduit fittings with terminations meet the mechanical performance requirements for bending resistance.

Test Principle: A servo motor drives a rotary table to bend the flexible conduit left and right at a specified speed and angle. The machine stops automatically when the preset number of cycles is reached.

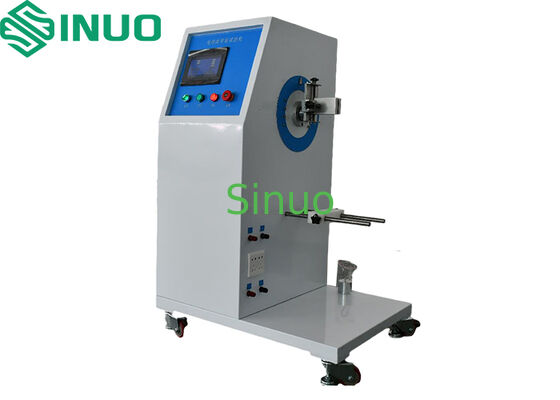

IEC61386-1&23 Flexible Conduit Bending Tester 0-360° Adjustable 0

Equipment Structure:

Servo motor drive with large aluminum mounting plate for large specimens, ensures the swing axis aligns as closely as possible with the cable entry point of the fitting, minimizing lateral displacement of the cable and load.

Technical parameters:

No.	Item	parameters
1	Power supply	AC 220 V ±10%, 50–60 Hz, 0.75 kW
2	Test stations	Single station
3	Electrical control	PLC integrated control with 7-inch HMI touch screen
4	Drive mode	Servo motor drive
5	Specimen clamping	Mechanical clamping, adjustable clamping position
6	Bending angle	0–360° adjustable (preset options: ±30°, ±45°, ±60°, ±90°)
7	Bending direction
8	Bending speed	0–60 cycles/min (presettable; default 40 cycles/min)
9	Bending cycles	0–999,999 presettable (default 5,000 cycles)
10	Support blocks	Height Z: adjustable 0–300 mm Center spacing: adjustable 0–100 mm Bottom chamfer R2, top chamfer R1
11	Overall dimensions	approx. 800 × 800 × 1300 mm (W × H × D)
12	Weight	130 kg
