IEC60695-11-5 Needle-flame Test Method Fire Hazard Testing Apparatus

MOQ:	1
harga:	dapat dinegosiasikan
Kemasan Standar:	Kasus kayu lapis
Periode pengiriman:	30 hari
Cara Pembayaran:	T/T
Kapasitas pasokan:	10 Set Per Bulan

Informasi detil

Deskripsi Produk

Informasi detil

Tempat asal

Nama merek

Sinuo

Sertifikasi

Calibration Certificate (Cost Additional)

Nomor model

SN773

Modus kontrol:

<133Pa

perangkat waktu:

9999X0.1S

Lubang dalam ruang bakar:

φ0,5 mm ± 0,1 mm

Diameter luar ruang bakar:

≤φ0.9mm

Sudut pembakaran:

Miring 45 ° (pengujian) atau vertikal

Kisaran Suhu:

0~1000℃

Menyoroti:

IEC60695-11-5 needle-flame test apparatus

fire hazard testing equipment

electrical appliance flame test device

Deskripsi Produk

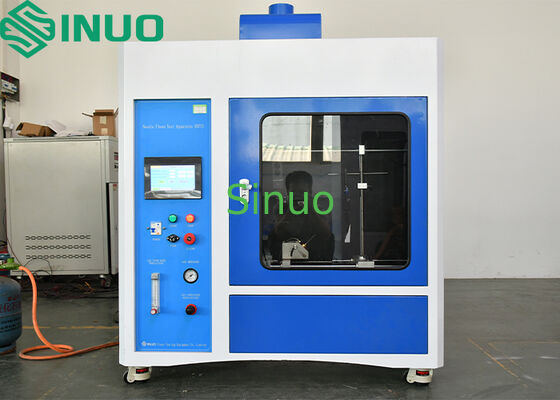

IEC60695-11-5 Needle-flame Test Method Fire Hazard Testing Apparatus

The Needle Flame Tester evaluates fire hazards in electrical equipment by simulating fault conditions that may cause internal flames. This apparatus assesses whether specimens ignite and measures combustion duration and spread.

Product Overview

This testing apparatus features a 0.9mm needle-shaped burner tilted at 45° and fueled by butane gas. It conforms to IEC60695-11-5 standards and is required by IEC60335-1 clause 30.2.3.2 and Annex E.

Key Features

PLC control system with 7-inch color touch screen interface
Precision flame control with adjustable height and temperature monitoring
Automatic test procedure control with independent air draft system
Stainless steel construction with 0.5 cubic meter workspace
Comprehensive timing and temperature measurement capabilities

Applications

Ideal for research, production, and quality testing departments in various industries including:

Lighting equipment and low-voltage apparatus
Household appliances and machine tool electrical components
Electric tools, motors, and electronic instruments
Electrical connectors and insulating materials
Engineering plastics and solid combustible materials

Technical Specifications

Parameter/Model	SN773
Working Voltage	AC 220V/50Hz
Control System	PLC
Display	7 inch color touch screen
Timing Device	9999×0.1S
Combustor	Stainless steel, inner bore φ0.5mm ± 0.1mm, OD ≤φ0.9mm, L ≥ 35mm
Combustion Angle	45° tilt (testing) or vertical (flame height adjustment)
Flame Height	12±1mm adjustable (with flame height gauge)
Gas Category	95% butane gas (bottled lighter gas compatible)
Temperature Range	0~1000℃
Flame Warming Requirement	100° to 700° within 23.5S±1S
Temperature Thermocouple	φ0.5 armor nickel-chromium/nickel aluminum wire K-Thermocouple
Workshop	0.5 cubic meter, stainless steel case, black background
Testing Process	Automatic control with independent air draft
Volume Size Adjustment	Flowmeter adjustment
Equipment Dimensions & Weight	1100mm × 550mm × 1100mm, 120kg
Conforms to Standards	IEC 60695-11-5, IEC60335-1, etc.

Included Accessories

White Pine Test Board
Five Sheets of Tissue Paper
Flame Height Gauge
