IEC 60670-1:2024 High And Low Pendulum Hammer Impact Test Apparatus

Produk

Peralatan pengujian perangkat medis

Alat Uji Untuk Lab Listrik

Hubungi Kami

sales@sinuotek.com

+86 13527656435

Hubungi Sekarang

IEC 60670-1:2024 High And Low Pendulum Hammer Impact Test Apparatus

MOQ:	1
harga:	dapat dinegosiasikan
Kemasan Standar:	Kasus Kayu Lapis
Periode pengiriman:	30 hari
Cara Pembayaran:	T/T
Kapasitas pasokan:	5 set per bulan

Informasi detil

Deskripsi Produk

Informasi detil

Tempat asal

Nama merek

Sinuo

Sertifikasi

Calibration Certificate (Cost Additional)

Nomor model

SN2122C

Elemen yang Mencolok:

IK01-IK11

Massa Setara:

250g, 500g, 1,7kg, 5kg,10kg

Tabung Pendulum:

Panjang 1000㎜, diameter luar 9mm dan 15,9 mm

Pukulan Dampak:

200-1200mm

Perlengkapan sampel:

Selembar kayu lapis tebal 8 mm dan luas 175 persegi

Modus kontrol:

Mode listrik, digerakkan oleh motor

Menyoroti:

IEC 60670-1 pendulum hammer tester

high low impact test apparatus

electrical appliance impact testing equipment

Deskripsi Produk

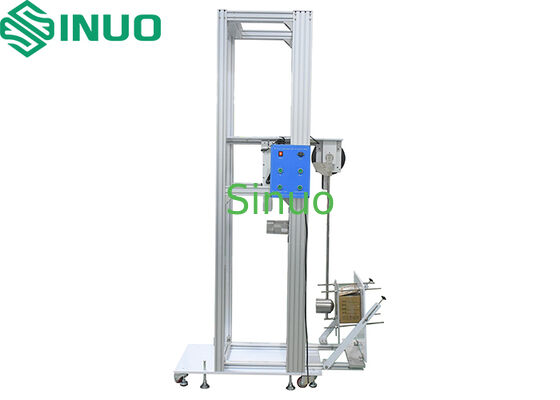

IEC 60670-1:2024 High And Low Pendulum Hammer Impact Test Apparatus

This test apparatus is designed for impact resistance testing of household and similar electronic and electrical products and their accessories, including plugs, sockets, wall-mounted mounting boxes, screw glands, covers, switches, and lamps. The equipment assesses product safety performance and strength levels.

Compliance Standards

IEC60068-2-75:2014 "Environment testing for electric and electronic products Part2: Test methods - Test Eh: Hammer tests IDT"
IEC60598-1:2017 "Luminaries-Part1: General requirements and tests"
EC62262:2002 "Degrees of protection provided by enclosures for electrical equipment against external mechanical impacts (IK code)"
IEC 60670-1:2024 "Boxes and enclosures for electrical accessories for household and similar fixed electrical installations - Part 1: General requirements" figure 23

Structural Design

The high-energy pendulum impact test device features a trolley structure with left-right mobility. Upper and lower impact point heights are adjustable via screw guide mechanisms, with impact angles adjustable from 0 to 90°. The striking element is released from specific heights through a 1-meter pendulum tube, impacting specimens at the lowest vertical point. This converts gravitational potential energy to kinetic energy for effective impact testing.

Technical Parameters

Parameter	Specification
Striking Elements (Energy/J)	0.14J (IK01), 0.2J (IK02), 0.35J (IK03), 0.5J (IK04), 0.7J (IK05), 1J (IK06), 2J (IK07), 5J (IK08), 10J (IK09), 20J (IK10), 50J (IK11)
Equivalent Mass kg	250g, 500g, 1.7kg, 5 kg, 10 kg for 2J, 5J, 10J, 20J, 50J ( refer to Table 1)
Striking Elements Material	Steel
Pendulum Tube	Length 1000㎜, outer diameter 9mm and 15.9 mm, wall thickness 1.5 mm steel pipe
Impact Point	Electrically adjustable up and down, stroke: 200-1200mm
Height of Fall	0-500mm, scale display
Sample fixture for IEC 60670-1:2024	A sheet of plywood 8mm thick and 175 square
Lifting	Electrical mode, driven by motor
Impact element release method	Electromagnetic release
Base plate	Thicken load-bearing steel base plate
Way of moving	With casters, can be moved to sample impact point position
Anti-secondary impact function	Yes

Technical Diagrams

IK Code and Energy Relationship

IK Code	IK00	IK01	IK02	IK03	IK04	IK05	IK06	IK07	IK08	IK09	IK10	IK11
Energy / J	a	0.14	0.2	0.35	0.5	0.7	1	2	5	10	20	50

Note 1: If higher impact energy is required, the recommended value is 50J.
Note 2: Some other standards use a single digit to indicate the specified impact energy. To avoid mixing with it, the feature number is represented by two digits.
a: Unprotected according to this standard
