Ceramic Material Fuchsine and Methylated Spirit Pressure Test Apparatus
  • nama
  • nama
  • nama

Ceramic Material Fuchsine and Methylated Spirit Pressure Test Apparatus

MOQ: 1
harga: dapat dinegosiasikan
Kemasan Standar: Kasus Kayu Lapis
Periode pengiriman: 30 hari
Cara Pembayaran: T/T
Kapasitas pasokan: 5 set per bulan
Informasi detil
Deskripsi Produk
Informasi detil
Tempat asal
Cina
Nama merek
Sinuo
Sertifikasi
Calibration Certificate (Cost Additional)
Nomor model
SN1110
Rentang Tekanan Uji:
0~20MPa±0,5MPa, dapat disesuaikan
Tekanan Uji Maksimal:
20mpa
Waktu menahan tekanan:
0~99 dapat diatur
Metode tekanan:
Tekanan manual
Wadah uji:
Volumenya >100ml
Tingkat Peningkatan:
100KPa/dtk
Deskripsi Produk

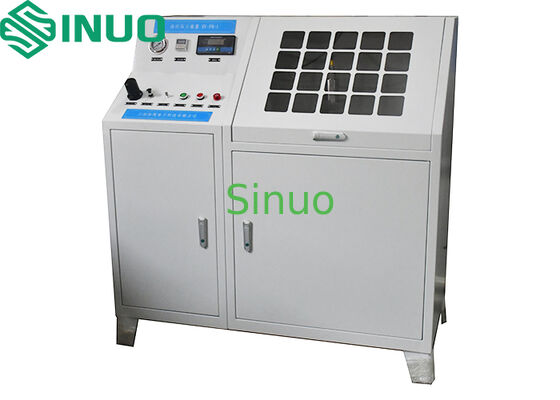

Ceramic Material Fuchsine and Methylated Spirit Pressure Test Apparatus
This ceramic material fuchsine spirit pressure test apparatus meets the requirements of IEC 60335-1 clause 22.32. It is used to determine if ceramic material is tightly sintered.
The test machine includes the test container, pressure boosting device, and explosion-proof chamber with observation window, ensuring easy and safe operation.
Technical Specifications
Parameter Specification
Test Container Volume >100ml, pressure bearing capacity >15MPa, made of stainless steel
Power Supply Matches client's local power supply
Pressure Hold Time 0~99s can be set
Maximum Test Pressure 20MPa
Pressurization Method Manual pressurization
Test Pressure Range 0~20MPa±0.5MPa, can be adjusted
Boost Rate 100KPa/s
Display Mode Digital display
Operation Procedure
  1. Fill the tank with water
  2. Place the sample in the container bottles
  3. Set the desired pressure
  4. Tighten the pressure relief valve
  5. Turn on the power switch
  6. Set the test time (Note: This time only serves as a completion prompt and does not automatically relieve pressure)
  7. Press the start switch to begin testing
  8. Complete the test
Important Safety Note: Pressure relief must be performed manually by loosening the pressure relief valve. The system does not automatically relieve pressure.
