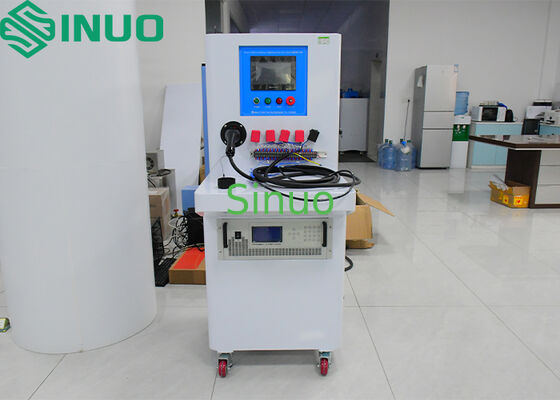

IEC 62196-3: 2022 Electric Vehicle Connectors Temperature Rise Test System
  • nama
  • nama
  • nama
  • nama

IEC 62196-3: 2022 Electric Vehicle Connectors Temperature Rise Test System

MOQ: 1
harga: Customized
Kemasan Standar: kasus kayu lapis
Periode pengiriman: 30 HARI
Cara Pembayaran: T/T
Kapasitas pasokan: 10 Set Per Bulan
Informasi detil
Deskripsi Produk
Informasi detil
Tempat asal
Cina
Nama merek
Sinuo
Sertifikasi
Calibration Certificate(Cost Additional)
Nomor model
SNQC1006-100A
Titik Pengukuran Suhu:
16 saluran
Arus Keluaran:
AC 0-100A
Keluaran Mode Saat Ini:
Berkelanjutan/ Intermiten
Resolusi Saat Ini:
0,1A
Akurasi Ammeter:
±1%±3 byte
Akurasi voltmeter:
±1%±3 byte
Deskripsi Produk

IEC 62196-3: 2022 Electric Vehicle Connectors Temperature Rise Test System



Product information:


This temperature rise test system meets the standard requirements of IEC 62196-3: 2022 clause 24, IEC 62196-1: 2022 clause 24, clause 34.2, 34.4 and 35.4, IEC 60309-1: 2012 clause
22, etc.
It is suitable for detecting the temperature rise test after the charging pile interface plug and socket pass the rated current, and assessing the heating of the surface of the electrical accessories when the load current is connected, and whether the temperature rise of the terminal meets the requirements of the standard.



Equipment Principle:


The temperature rise test system consists of an electric voltage regulator, a current transducer, a PLC programmable controller, a current sensor, a humanized touch screen and a movable chassis. It can stably output the test current, and eliminate the influence to the test current caused by the fluctuation of the power supply voltage, the connecting wire or the copper bar, and the resistance value of the sample, and improve the accuracy of the test result. The power supply have functions of low loss, high efficiency, easy operation, complete control and detection. The touch screen can display the current value and the temperature values of each temperature measurement points in real time. The temperature value can be recorded every 2 seconds and report can be generated, which can be stored in a USB flash drive and copied to a computer for viewing and printing.



Technical parameters:


Temperature Measurement Point

16 channels

Operation Method

Color humanized touch interface

Output Constant Adjustable Current

AC 0-100A

Output Current Mode

Continuous/ Intermittent

Load Test Output Voltage

Below AC 5V

Current Resolution

0.1A

Ammeter Accuracy

±1%±3 bytes

Voltmeter Accuracy

±1%±3 bytes

Continuous Mode Test Time

0.01～99.99 hours

Intermittent Mode Test Time

0.01～99.99 hours

Intermittent Mode Test Cycles

1～99999 cycles, automatic shutdown when the test cycles reach to the preset value

Temperature Measurement Range

0~400°C, accuracy 0.3% reading + 1°C; resolution: 0.1°C

Temperature Data Acquisition

Configure RS232 communication interface and data record interface

Temperature Scanning Speed

1 to 255 seconds all channels

Temperature Data Record

The data can be stored U disk



Temperature Measuring Thermocouple

American Omega T-type 30AWG filament thermocouple, length 2 meters, a

total of 8 pieces

Power Supply

Single phase AC220V±10%, 50/60Hz, 3KVA

Equipment Dimensions and weight

Approx. L 800mm* W 680mm* H1610mm, 125KG


IEC 62196-3: 2022 Electric Vehicle Connectors Temperature Rise Test System 0
