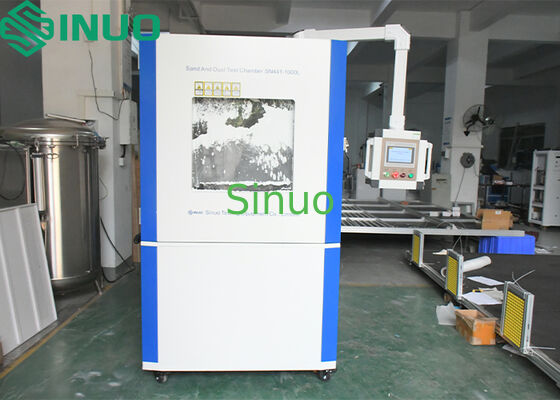

IEC60529 Gambar 2 IP5X/6X Kamar Uji Pasir Dan Bubuk 1000L
| Fine Dust: | 75um atau kurang | Coarse Dust: | 150um atau kurang |
| Dust Concentration: | 2kg/m³ | Air Flow Meter: | 1-20L/M |
| Baking Dust Temperature: | RT+10℃～60℃ | Talcum Powder dosage: | 2～5kgm³ |
| High Light: | IP5X/6X ruang uji debu 1000L,IEC60529 ruang uji pasir,ruang uji lingkungan dengan garansi |
||
- Testing electrical and electronic products in sand and dust environments (Menguji produk listrik dan elektronik di lingkungan pasir dan debu)
- Evaluating automobile and motorcycle components and seals Mengevaluasi komponen dan segel mobil dan sepeda motor
- Simulasi kondisi pasir dan debu alami dan kendaraan-induced
- Assessing harmful effects of particle-laden airflow on electrical products Mengkaji efek berbahaya dari aliran udara yang dipenuhi partikel pada produk listrik
| Parameter | Spesifikasi |
|---|---|
| Model | SN441-1000L |
| Working Size (mm) | L1000 × W1000 × H1000 |
| Ukuran luar (mm) | L1450 × W1250 × H2200 |
| Parameter | Spesifikasi |
|---|---|
| Baking Dust Temperature Range | RT +10°C ≈ 60°C |
| Dust halus. | 75 μm atau kurang. |
| debu kasar. | 150 μm atau kurang |
| Kecepatan aliran udara | Tidak lebih dari 2m/s. |
| Konsentrasi debu | 2 kg/m3 |
| Dosis Talcum Powder | 2,5 kg/m3 |
| Metode Dust Blowing | Dari atas ke bawah. |
| Perbedaan Tekanan Negatif | - 10 ~ 0kPa (adjustable) |
| Diameter Metal Mesh | 50 μm |
| Jarak nominal antara baris | 75 μm atau kurang dari 150 μm |
| Tipe kontrol | Jangkauan |
|---|---|
| Waktu Shock. | 1s99h (adjustable) |
| Test Time Timing | 1s99h (adjustable) |
| Siklus Kontrol Dust Blowing | 1s99h (adjustable) |
| Vacuum Time | 1s99h (adjustable) |
- Inner Chamber Material: SUS201 stainless steel mirror panel
- Outer Chamber Material: A3 iron plate dengan electrostatic spraying treatment
- Structure Components: Test chamber, dust suction port, circulating dust blowing device, vacuum system, flow valve, heating system, protective screen (menyimpan debu, sistem vakum, katup aliran, sistem pemanas, layar pelindung)
- Jendela Observasi: 1 PC
- Lampu pencahayaan: 1 PC
- Load Bearing: 20kg
| Parameter | Spesifikasi |
|---|---|
| Sumber Daya | AC380V tiga-fase lima-kawat, 50Hz |
| Perlindungan Sirkuit | 32A air switch dengan terminal blocks |
| Kabel listrik | ≥ 4 meter persegi |
| Konsumsi Daya | 3 kW (tidak ada beban) |
| Sistem Kontrol Sampel Soket Daya | Soket anti debu AC220V 16A |
- Perlindungan urutan fase.
- Perlindungan terhadap kebocoran
| Tidak, tidak. | Nama komponen | Merek | Perhatikan |
|---|---|---|---|
| 1 | Kontroler layar sentuh | MCGS | |
| 2 | PLC | XINJE | |
| 3 | Kontaktor AC | Chint. | |
| 4 | Intermediate Relay | Chint. | |
| 5 | Phase Sequence Protector | Chint. | |
| 6 | Tombol yang terang. | ONPOW | |
| 7 | Hentikan darurat | ONPOW | |
| 8 | Alarm | ONPOW | |
| 9 | Pemecah Sirkuit | Chint. | |
| 10 | Meter Aliran | Dibuat di Cina | |
| 11 | Mica Heating Plate | Sesuaikan | |
| 12 | Pengukur Tekanan Digital | SMC | |
| 13 | Transfer Switch | GELEI | |
| 14 | Vortex Air Pump | JIUZHOU | |
| 15 | Motor getaran | RPM300 | |
| 16 | Smart Thermostat | Delta | |
| 17 | Probe K2M. | KERUNMEI | |
| 18 | Vacuum Mercury. | Feiyue | |
| 19 | Dust Bag. | Dibuat di Cina | |
| 20 | Dustproof Socket | Dibuat di Cina | |
| 21 | Dust Blowing Pipe | Sesuaikan |
| Nama Aksesoris | Jumlah | Perhatikan |
|---|---|---|
| Sikat | 1 PC | |
| Window Dust Scraper | 1 PC | |
| Dustproof Socket | 1 SET | |
| Filter Element 5 inci | 2 PCS |
