Vertical Impact Test Platform For 3D-Printed Samples Impact Resistance

MOQ:	1
harga:	Customized
Kemasan Standar:	Plywood Case
Periode pengiriman:	40 Days
Cara Pembayaran:	T/T
Kapasitas pasokan:	10 sets per month

Rincian Informasi

Deskripsi Produk

Informasi detil

Place of Origin

China

Nama merek

Sinuo

Sertifikasi

Calibration Certificate(Cost Additional )

Model Number

SN2206E

Test Sample:

Metal 3D-printed sample

Test Station:

1 station

Steel Ball:

Size can be customized

Drop Height:

200–1800 mm

Impact Energy:

Calculated by E = mgh, up to 423 J

Test Cycles:

0–999,999, presettable

Deskripsi Produk

Vertical Impact Test Platform For 3D-Printed Samples Impact Resistance

Product information:

This test platform is custom-designed and manufactured strictly according to customer requirements. It is specifically developed to verify the impact resistance of 3D-printed samples and serves as a specialized mechanical strength testing device. It is suitable for use in certification bodies and factory laboratories.

The system consists of an electromagnet release mechanism, impact element, frame, and control system. Controlled via PLC, the drop height is adjustable through a touchscreen and can be operated remotely. The system features electric lifting, automatic magnetic ball adsorption, and supports repeated drop tests.

Purpose, Principle & Structure:

This test machine is primarily used for impact resistance testing of metal 3D-printed samples.

Working Principle:

According to standard Ehc for vertical drop hammer tests, the impact element (a Φ180mm steel ball weighing 24 kg) freely falls from a defined height through a guiding tube, striking the sample vertically. The system converts gravitational potential energy into kinetic energy to achieve impact testing on the sample.

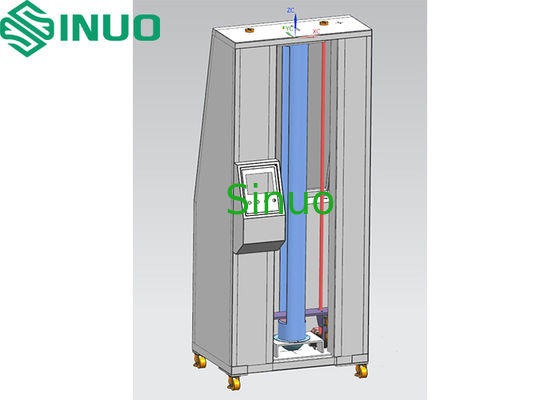

Structure:

Vertical Impact Test Platform For 3D-Printed Samples Impact Resistance 0

Technical Specifications:

No.	Item	Specification
1	Power Supply	AC 220V 50Hz, 1 kW
2	Control System	PLC control, touchscreen operation
3	Test Sample	Metal 3D-printed sample, max size 20 × 20 × 20 cm
4	Test Station	1 station
5	Steel Ball	Φ180 mm, 24 kg
6	Drop Height	200–1800 mm, adjustable via touchscreen
7	Impact Energy	Calculated by E = mgh, up to 423 J
8	Drop Guide Tube	Dedicated tube for each impactor, small clearance fit
9	Impact Point	Fixed, consistent position through guided drop
10	Test Cycles	0–999,999, presettable
11	Test Process	Lift via electromagnet, release manually or automatically
12	Frame Structure	Reinforced steel frame, designed to withstand high stress
13	Dimensions (W×D×H)	Approx. 1000 × 700 × 2300 mm
14	Weight	250 kg

Main System Configuration:

Component	Brand
Electrical Cabinet	Sinuo
PLC	Mitsubishi
Touchscreen	Weintek
Electrical Components	FUJI, Schneider, Omron, Chint
Electromagnet	Domestic
Guide Rail	Taijia
Frame	Sinuo
Fixture	Sinuo
Software	Sinuo
