IPX5 IPX6 Water Jet Test System For Waterproof Rating IEC 60529

MOQ:	1
harga:	Customized
Kemasan Standar:	Kasus kayu lapis
Periode pengiriman:	30 hari
Cara Pembayaran:	T/T
Kapasitas pasokan:	10 set per bulan

Rincian Informasi

Deskripsi Produk

Informasi detil

Tempat asal

Nama merek

Sinuo

Sertifikasi

Calibration Certificate(Cost Additional )

Nomor model

SN448

Standar Terapan:

IEC 60529: 2013

Kode IP:

IPX5 dan IPX6

Metode Kontrol:

PLC dan Layar Sentuh

Struktur Sistem:

Buka Konfigurasi

Diameter mesin putar:

Φ600mm

Kecepatan rotasi:

1r/menit

Deskripsi Produk

IPX5 IPX6 Water Jet Test System For Waterproof Rating IEC 60529

Product Overview:

Fully conforms to IEC 60529:2013, specifically IPX5 and IPX6 – degrees of protection against water ingress for enclosures.

The device is a high-precision water jet testing system designed to verify the waterproof performance of a wide range of products under controlled spray conditions. It simulates strong water jet impact from all directions to ensure compliance with IPX5/IPX6 requirements.

IPX5 IPX6 Water Jet Test System For Waterproof Rating IEC 60529 0

Wide Application:

Electronic & electrical devices

Automotive and motorcycle components

Household appliances

Sealing structures

Lighting and outdoor fixtures

Structure:

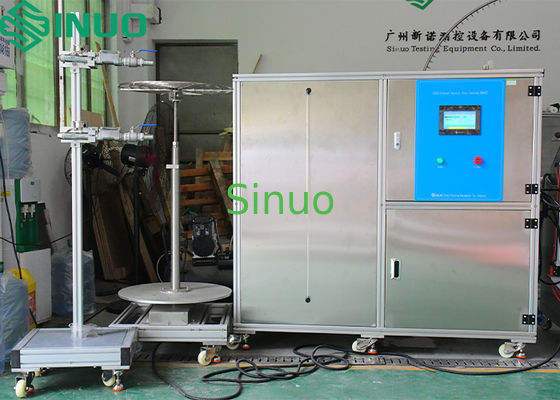

The complete test system includes a set of IPX5 and IPX6 standard water jet nozzles, an electrical control cabinet integrated with a stainless steel water tank, a nozzle mounting support, and a motorized turntable.

During testing, the sample is positioned on the turntable, which rotates at a fixed speed of 1 RPM, allowing water jets to spray the enclosure from all practicable angles, as required by the standard.

The electrical control unit and water storage tank are designed as an integrated module. The system adopts an open-loop water structure, ensuring ease of maintenance and non-recycled clean water for each test.

Technical parameters:

Parameters of Hose Nozzle	IPX5: Ф6.3mm; IPX6: Ф12.5mm
Delivery Rate	IPX5: 12.5±0.625L/min IPX6: 100±5 L/min
Distance from Nozzle to Enclosure Surface	2.8m (The distance from the nozzle to the center surface of the turntable, standard requires 2.5-3m)
Water Jet Directions	The angle of water jetting can be adjusted
Control & Operation	PLC and touch screen intelligent control system
Nozzle Fixed Method	Fixed on the support
Pressure Gauge	0~0.25MPa, can be displayed
Test Duration	0.01S～99.9 min, can be preset
Turntable	Diameter: Φ600mm, rotation speed: 1r/min, bearing capacity: ≤50kgs
Water Storage Tank	This test system adopts open type structure, the test water is not recycled. The test system is equipped with an approximately 500L stainless steel water storage tank. The water storage tank is equipped with a water level float valve to automatically control the water inlet, and has high and low water level alarm detection, to effectively prevent the pump from being damaged due to dry water. The water storage tank and electrical control part are integrated.
Safety Protection	Phase sequence protection, leakage protection, water shortage protection, abnormal protection.
Power Supply	AC380V,50Hz, 4KW
