Non-rewireable Accessories Mechanical Strength Flexing Testing Apparatus

MOQ: 1
harga: dapat dinegosiasikan
Kemasan Standar: Kasing kayu lapis
Periode pengiriman: 30 hari
Cara Pembayaran: T/t
Kapasitas pasokan: 1 Set Per Bulan
Rincian Informasi
Deskripsi Produk
Informasi detil
Tempat asal
CINA
Nama merek
Sinuo
Sertifikasi
Calibration Certificate (Cost Additional)
Nomor model
SNQC1009
Sistem Kontrol:
Layar sentuh PLC+7-inci
Mode drive:
Motor servo
Sudut pelenturan:
0-360 °
Tingkat Lentur:
0-60 siklus / menit
Siklus Meregangkan:
0~999999
Memuat bobot:
20n, 25n, 50n, 75n, 100n, 120n, 140n, 180n
Menyoroti:

PLC-controlled flexing tester

,

360° angle flexing tester

,

60 cycles/min vehicle tester

Deskripsi Produk

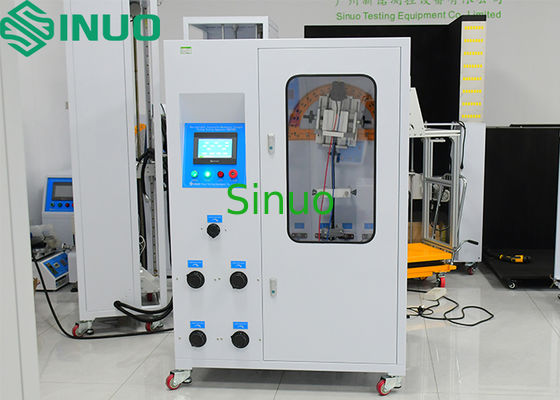

Non-rewireable Accessories Mechanical Strength Flexing Testing Apparatus
This flexibility testing apparatus is designed for conducting mechanical load flexing tests on vehicle plugs, socket-outlets, couplers, and non-rewireable accessories in compliance with IEC 62196-1:2022 and IEC 60309-1:2012 standards.
Key Features
  • PLC-controlled system with 7-inch color touch HMI interface
  • Servo motor-driven flexing angle adjustment
  • Programmable test parameters including flexing angle, speed, and cycles
  • Automatic operation with completion notification
  • High-precision digital display and control
  • Multifunctional modular fixtures for various sample types
  • Built-in load function with adjustable voltage and current
Technical Specifications
Parameter Specification
Test Station Single
Control System PLC with 7-inch touch interface
Drive Mechanism Servo motor
Flexing Angle 0-360° adjustable (default 90°)
Flexing Rate 0-60 cycles/min (presettable)
Test Cycles 0-999,999 (default 20,000)
Load Weights 20N, 25N, 50N, 75N, 100N, 120N, 140N, 180N
Load Power 0-250V, AC 0-400A (external source required for >400A)
Dimensions 850mm × 800mm × 1500mm (L×W×H)
Weight Approx. 300kg
Power Supply Three phase AC380V±10%, 50/60Hz
Non-rewireable Accessories Mechanical Strength Flexing Testing Apparatus 0
