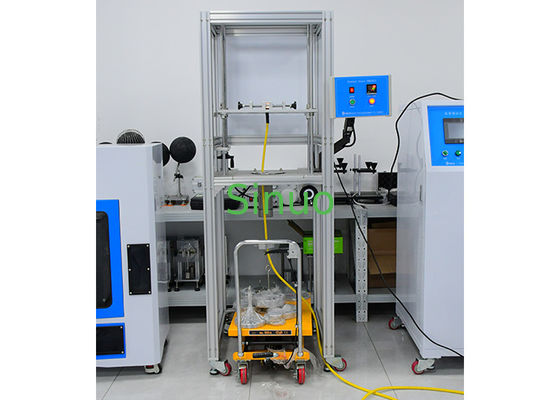

Terminal Tester IEC 62196-1 Figure 7 Screw Terminal Strength & Durability Testing Machine

Produk

Peralatan pengujian perangkat medis

Alat Uji Untuk Lab Listrik

Hubungi Kami

Ms. Zoe Zou

sales@sinuotek.com

86-020-39185976

Hubungi Sekarang

Terminal Tester IEC 62196-1 Figure 7 Screw Terminal Strength & Durability Testing Machine

MOQ:	1
harga:	Customized
Kemasan Standar:	Kasing kayu lapis
Periode pengiriman:	30 hari
Cara Pembayaran:	T/t
Kapasitas pasokan:	1 Set Per Bulan

Rincian Informasi

Deskripsi Produk

Informasi detil

Tempat asal

Nama merek

Sinuo

Sertifikasi

Calibration Certificate (Cost Additional)

Nomor model

SNQC1012

stasiun uji:

lajang

Beban berat:

0,4-70,3Kg

Diameter berputar:

Tingkat Uji:

(10±2) putaran/menit

Waktu Ujian:

1-999999 kali

Ketinggian uji:

260-660mm

Metode kontrol:

Kontrol tombol

Catu daya:

AC220V, 60Hz

Deskripsi Produk

Terminal Tester IEC 62196-1 Figure 7 Screw Terminal Strength & Durability Testing Machine

Product Information:

This Terminal Testing Machine is specially designed in accordance with IEC 62196-1:2022 clause 13.3.1, figure 12, and table 3. It is used to evaluate the strength, durability, and reliability of clamping screw terminals to ensure safe performance under normal operating conditions.

The equipment checks whether the screw terminal design prevents over-damage to the wire and withstands mechanical stress during normal use. With preset testing cycles, automatic stop, and alarm function, the tester provides accurate and efficient compliance testing for electrical accessories.

Key Features:

Conforms to IEC 62196-1:2022 requirements

Preset testing times (1~9999 cycles, default 150 times in 15 min)

Automatic stop with alarm when cycles are completed

Adjustable rotating weight from 0.4 to 70.3 kg

Rotating speed: (10 ± 2) r/min

Wide range of bushing hole diameters: 6.5mm to 44.5mm

Adjustable test height: 260–660mm

Robust design for long-term durability

Technical Parameters:

Parameter	Specification
Power Supply	AC220V, 50/60Hz
Counting Range	1 ~ 9999 cycles (default: 150 times / 15 min)
Rate of Testing	(10 ± 2) r/min
Rotating Weight	0.4 ~ 70.3 kg (details per IEC table 3)
Rotating Diameter	75 mm
Bushing Hole Diameters	6.5, 9.5, 13, 14.5, 15.9, 19.1, 22.2, 25.4, 28.6, 31.8, 38.1, 44.5 mm
Adjustable Height (H)	260 ~ 660 mm
Machine Dimensions (L×W×H)	790 × 400 × 1500 mm

The busing and mass configuring is as following table:

Terminal Tester IEC 62196-1 Figure 7 Screw Terminal Strength & Durability Testing Machine 0

Produk

MOQ:	1
harga:	Customized
Kemasan Standar:	Kasing kayu lapis
Periode pengiriman:	30 hari
Cara Pembayaran:	T/t
Kapasitas pasokan:	1 Set Per Bulan

Informasi detil

Deskripsi Produk

Informasi detil

Tempat asal

Nama merek

Sinuo

Sertifikasi

Calibration Certificate (Cost Additional)

Nomor model

SNQC1012

stasiun uji:

lajang

Beban berat:

0,4-70,3Kg

Diameter berputar:

Tingkat Uji:

(10±2) putaran/menit

Waktu Ujian:

1-999999 kali

Ketinggian uji:

260-660mm

Metode kontrol:

Kontrol tombol

Catu daya:

AC220V, 60Hz

Kuantitas min Order:

Harga:

Customized

Kemasan rincian:

Kasing kayu lapis

Waktu pengiriman:

30 hari

Syarat-syarat pembayaran:

Menyediakan kemampuan:

1 Set Per Bulan

Deskripsi Produk

Terminal Tester IEC 62196-1 Figure 7 Screw Terminal Strength & Durability Testing Machine

Product Information:

Key Features:

Conforms to IEC 62196-1:2022 requirements

Preset testing times (1~9999 cycles, default 150 times in 15 min)

Automatic stop with alarm when cycles are completed

Adjustable rotating weight from 0.4 to 70.3 kg

Rotating speed: (10 ± 2) r/min

Wide range of bushing hole diameters: 6.5mm to 44.5mm

Adjustable test height: 260–660mm

Robust design for long-term durability

Technical Parameters:

Parameter	Specification
Power Supply	AC220V, 50/60Hz
Counting Range	1 ~ 9999 cycles (default: 150 times / 15 min)
Rate of Testing	(10 ± 2) r/min
Rotating Weight	0.4 ~ 70.3 kg (details per IEC table 3)
Rotating Diameter	75 mm
Bushing Hole Diameters	6.5, 9.5, 13, 14.5, 15.9, 19.1, 22.2, 25.4, 28.6, 31.8, 38.1, 44.5 mm
Adjustable Height (H)	260 ~ 660 mm
Machine Dimensions (L×W×H)	790 × 400 × 1500 mm

The busing and mass configuring is as following table:

Terminal Tester IEC 62196-1 Figure 7 Screw Terminal Strength & Durability Testing Machine 0
