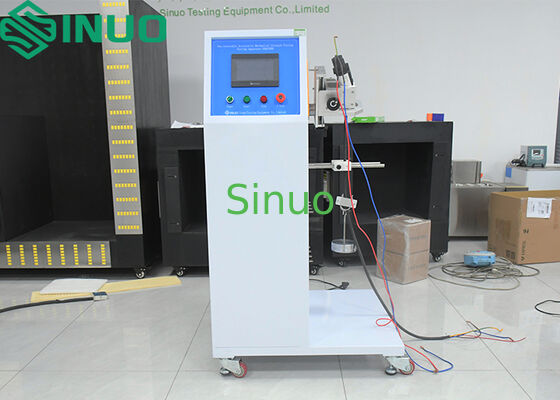

IEC62196-1 Alat Uji Kekuatan Mekanis Pistol Pengisian
| Test Station: | lajang | Drive Mode: | motor servo |
| Flexing Angle: | 0-360° dapat disesuaikan | Flexing Rate: | 0-60 siklus / menit, dapat diatur sebelumnya |
| Flexing Cycles: | 0~999999 dapat diatur sebelumnya, default 20000 siklus | Load Weights: | 20n, 25n, 50n, 75n, 100n, 120n, 140n, 180n |
| High Light: | IEC62196-1 alat pengujian senjata pengisian,Penguji kekuatan mekanik senapan pengisian,Peralatan pengujian lentur peralatan listrik |
||
- Tampilan dan pengukuran digital presisi tinggi
- Konversi frekuensi digital yang efisien
- Kemampuan penyesuaian kecepatan yang tepat
- Fungsi pengaturan memori enam digit
- Sistem perlengkapan modular multi-fungsi
- Alat pengukur pusat berputar
| Parameter | Spesifikasi |
|---|---|
| Stasiun Uji | Single |
| Metode Kontrol Listrik | PLC kontrol terintegrasi cerdas, operasi antarmuka sentuh 7-inci manusiawi |
| Mode Drive | Servo motor |
| Metode Pengaman Sampel | Klempakan mekanis, posisi titik klempakan yang dapat disesuaikan |
| Sudut Lipat | 0-360° diatur secara bebas (default: 90°, 45° di kedua sisi vertikal) |
| Tingkat Flexing | 0-60 siklus/menit, kemampuan preset |
| Siklus Peningkatan | 0-999,999 preset mampu (default: 20.000 siklus) |
| Berat Beban | 20N, 25N, 50N, 75N, 100N, 120N, 140N, 180N |
| Kekuatan beban | Sumber daya eksternal diperlukan |
| Penghakiman Uji | Pemantauan sinyal konduksi arus |
| Ukuran dan Berat Peralatan | 850mm × 800mm × 1500mm (L × W × H), sekitar 300Kg |
| Sumber Daya | Fase tunggal AC220V±10%, 50/60Hz |
