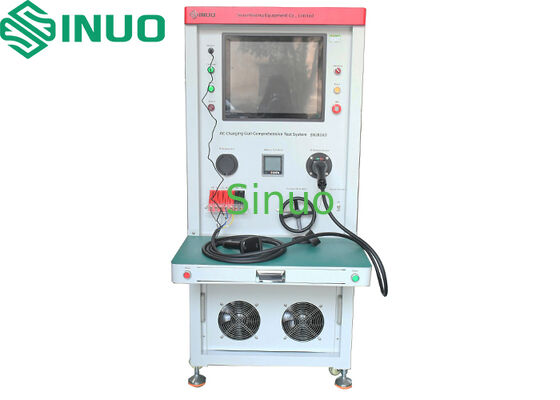

EU&UL standard Auto AC Charging Gun Comprehensive Test System

MOQ:	1
harga:	dapat dinegosiasikan
Kemasan Standar:	Kasus Kayu Lapis
Periode pengiriman:	40 hari
Cara Pembayaran:	T/T
Kapasitas pasokan:	1 Set Per Bulan

Informasi detil

Deskripsi Produk

Informasi detil

Tempat asal

Nama merek

Sinuo

Sertifikasi

Calibration Certificate (Cost Additional)

Nomor model

SNJ8163

Multi-Standar:

GB, UE, dan UL

Otomatisasi penuh:

Satu siklus menyelesaikan semua tes

Ketertelusuran QR:

Pemindai internal menghubungkan hasil tes ke ID produk

Cakupan luas:

Mendukung satu/tiga fase

Rentang Resistensi:

1 – 5000 Ω, Akurasi: 1%

Tes Termistor:

100 – 50.000 Ω, Akurasi: 2%

Menyoroti:

EU UL standard AC charging gun tester

Auto charging gun test system

Electrical appliance testing equipment with warranty

Deskripsi Produk

EU & UL Standard Auto AC Charging Gun Comprehensive Test System

This automated test system performs comprehensive functional testing of AC charging plugs and inlets compliant with GB (China), EU, and UL standards. Featuring QR code-based product identification, automatic data saving, and direct printing of qualified results, it enables full-test automation in a single cycle—significantly improving testing efficiency while reducing labor costs for high-volume manufacturing environments.

Key Testing Functions

Wire breakage, continuity, short circuit, and wiring sequence verification
Main conductor continuity resistance measurement
Built-in resistance measurement (with button pressed/unpressed states)
Current-carrying capacity and voltage drop analysis
Insulation resistance testing
Dielectric withstand (hipot) testing
Thermistor (temperature sensor) resistance measurement

Technical Specifications

Parameter	Details
Power Supply	Single-phase AC 220V / 50Hz
Air Supply	0.6 MPa
Control System	PLC + Industrial PC
Barcode/QR Code	Integrated scanner with test data traceability
Continuity & Wiring	PLC I/O scanning with auto pass/fail judgment
Built-in Resistance	Range: 1-5000 Ω, Accuracy: ±1%
CC & PE Resistance	Supports 16A/32A/63A AC plugs; accuracy: 1-2%
Thermistor Test	Range: 100-50,000 Ω, Accuracy: ±2%
Voltage Drop Test	Adjustable three-phase transformer: 0-380V, load 0-35A
Insulation Resistance	Test voltage: DC 100-1000V adjustable; lower limit: 1MΩ-1GΩ
Dielectric Strength	AC 0-5kV / DC 0-6kV; leakage current monitoring
Test Station	Single station, one product per test
Plug Holders	EU (vehicle & pedestal), GB, US AC holders
Socket Height	750-1000 mm, ergonomic design
Software	Windows 7/10 compatible with data export capabilities
Dimensions	W 900 × D 800 × H 1800 mm
Weight	Approx. 300 kg
Mobility	Lockable casters
MES Connectivity	Optional (additional cost)

System Advantages

• Fully automated testing process reduces manual intervention
• Supports multiple international standards (GB, EU, UL) in one system
• QR code-based traceability ensures complete test record linkage
• Modular test parameters and limit settings for flexible quality control
• Ready for factory integration with MES systems

Application: Ideal for EV charging cable and plug manufacturers requiring high-throughput, reliable, and traceable quality inspection for production line or incoming QC.
